Schneider 175 W Daylight PANEL

Schneider Smart Solar 175 Watt Daylight Panel provides you with the maximum energy in its class.

Schneider Smart Solar Daylight panel works efficiently even in cloudy weather and charges your battery quickly with a high current difference.

The product is sent to you as tested by our factory and technical team.

It is designed to be maintenance-free and to operate with high efficiency from direct sunlight.

It is in company guarantee and guarantee for 25 years.

TECHNICIAL SPECIFICATIONS

Power: 175W

Number of Cells: 36

Open Circuit Voltage (Voc): 22,30V

Max. Voltage (Vmp): 18.40V

Short Circuit Current (Isc): 9.30A

Max. Current (Imp): 8.97A

Max. System Voltage: 1000V

Module Dimensions: 1480*670*30mm

Weight : 11.5kg

Schneider 330 W Daylight PANEL

Schneider Smart Solar 330 Watt Daylight Panel provides you with the maximum energy in its class.

Schneider Smart Solar Daylight panel works efficiently even in cloudy weather and charges your battery quickly with a high current difference.

The product is sent to you as tested by our factory and technical team.

It is designed to be maintenance-free and to operate with high efficiency from direct sunlight.

It is in company guarantee and guarantee for 35 years.

TECHNICIAL SPECIFICATIONS

Output Power(W): 325W

  Vmp(V): 31.1

  Imp(A): 9.97

  Voc(V): 37.6

  Isc(A) :10.20

  Dimension(mm) 1640x992x35

  Weight(kg) 19.0

Schneider 430 W Daylight PANEL

Schneider Smart Solar 430 Watt Daylight Panel provides you with the maximum energy in its class.

The Schneider Smart Solar Daylight panel works efficiently even in cloudy weather and charges your battery quickly with a high current difference.

The product is sent to you as tested by our factory and technical team.

It is designed to be maintenance-free and to operate with high efficiency from direct sunlight.

Technicial Specifications

Model : PNL-430

Cell Type : Perc Monocrystalline

Maximum Power : 430 W

Maximum Power Voltage: 41.69V

Maximum Power Current: 9.60A

Open Circuit Voltage Voc : 48.96V

Short Circuit Current Isc: 10,11A

Maximum System Voltage: 1000VDC

Weight : 22 kg

Size : 1984x1007x40

Warranty Period: 35 Years

Origin : Germany

Schneider 460 W Daylight PANEL

Schneider Smart Solar 460 Wattt Daylight Panel provides you with the maximum energy in its class.

The Schneider Smart Solar Daylight panel works efficiently even in cloudy weather and charges your battery quickly with a high current difference.

The product is sent to you as tested by our factory and technical team.

It is designed to be maintenance-free and to operate with high efficiency from direct sunlight.

Technicial Specifications

Thanks to its high panel efficiency, it guarantees high power output.

 Self-cleaning and anti-reflective glass. The special coating on the glass reduces surface dust.

 High efficiency at low irradiance. High panel efficiency even in morning and cloudy weather conditions.

 Excellent strength capacity. 2400 pa wind load, 5400 pa snow load resistance

 0~+5wp positive power tolerance.

 Easy to install solar panel.

Warranty Period 35 Years

Origin Germany

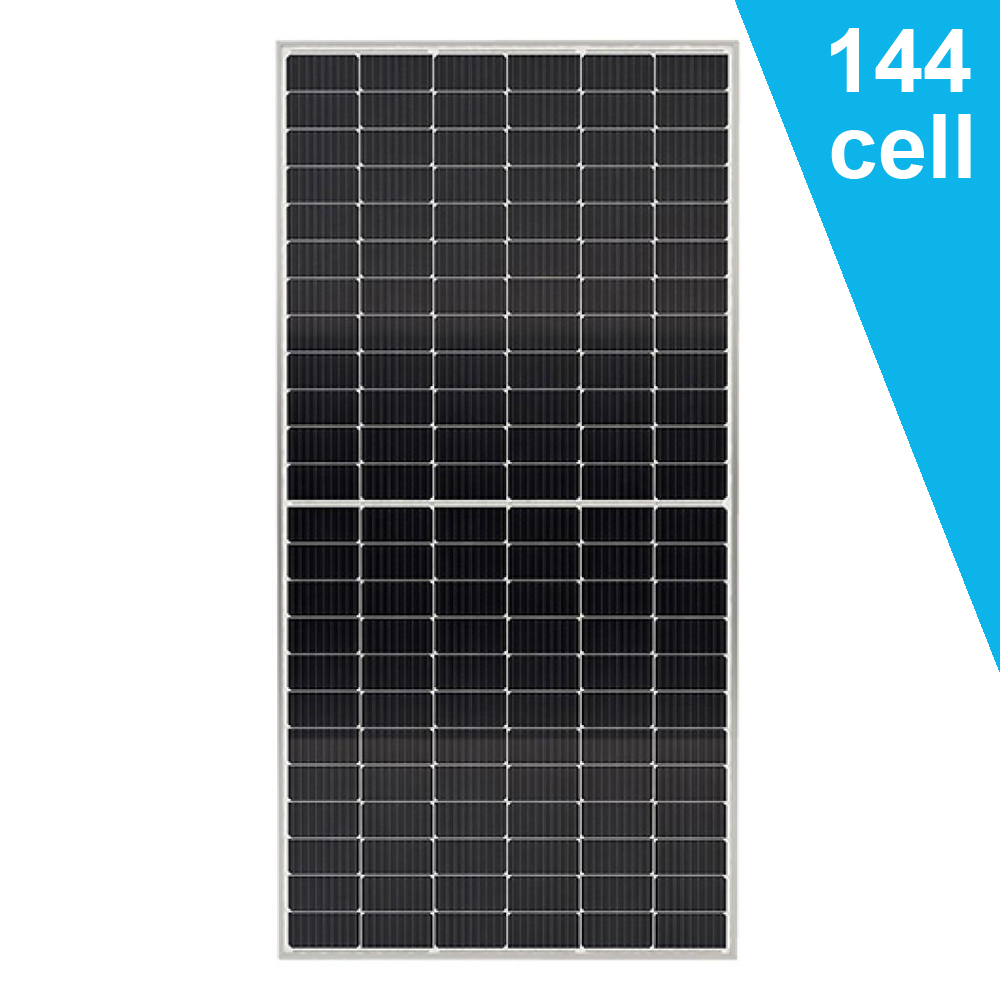

Schneider 625 W Daylight PANEL

Schneider Smart Solar 625 Wattt Daylight Panel provides you with the maximum energy in its class.

The Schneider Smart Solar Daylight panel works efficiently even in cloudy weather and charges your battery quickly with a high current difference.

The product is sent to you as tested by our factory and technical team.

It is designed to be maintenance-free and to operate with high efficiency from direct sunlight.

Technicial Specifications

Thanks to its high panel efficiency, it guarantees high power output.

 Self-cleaning and anti-reflective glass. The special coating on the glass reduces surface dust.

 High efficiency at low irradiance. High panel efficiency even in morning and cloudy weather conditions.

 Excellent strength capacity. 2400 pa wind load, 5400 pa snow load resistance

 0~+5wp positive power tolerance.

 Easy to install solar panel.

Warranty Period 35 Years

Origin Germany
